Sonara 4:4
PanaluxHeads
Featuring an innovative LED light engine, the Panalux Sonara 4:4 delivers soft, wraparound, color-accurate white light with a CCT range of 1,600-20,000K and a built-in library of select LEE Filters gel emulations. The fixture also offers 0-100% dimming, flicker-free performance tested to 10,000 fps, full connectivity options including native LumenRadio CRMX, and a range of control modes that can be easily navigated via detachable controller and intuitive user interface.
95+
TLCI
80+
SSI
1500
Watts
Product Details
| Manufacturer | Panalux |
|---|---|
| Model | Sonara 4:4 |
| Dimensions (mm)(in) | 1248 x 1248 x 13549.13 x 49.13 x 5.31 |
| Variant | 4:4 |
| Type | Soft Light |
| Power Draw (W) | 1500 |
| Supply Connector | 1 x Powercon True1 In, Head |
| Lux @ 3M (3200K) | 2197 (Spot) |
| Lux @ 3M (5600K) | 2197 (Spot) |
| TLCI | 95.5 |
| CRI | 96.3 |
| SSI | 82 |
| Built in Effects | No |
| Connector Type | 1 x Powercon True1 In, Head |
| CCT Range | 1600-20000K |
| Light Aperture | 1196 x 1196 |
| Beam Angle Max (°) | 120 |
| Battery Operated | No |
| High Speed Capability | Yes |
| Protection Rating | IP20 |
| Mounting | 28mm Spigot / M12 fixings |
| Panalux SKU | HIN98AR |
| Part Number | PSW44 |
| Weight (kg)(lbs) | 44.00 97 |
Ultra-soft light: With a wide aperture and 120-degree beam angle, Panalux Sonara produces a powerful, diffuse output that wraps around any subject.
Remarkably precise white: Precise white color-temperature light allows for accurate, natural skin-tone rendering. Panalux Sonara can also be tuned across a wide array of nuanced pastel hues and selected LEE Filters lighting gels, further expanding your creative possibilities.

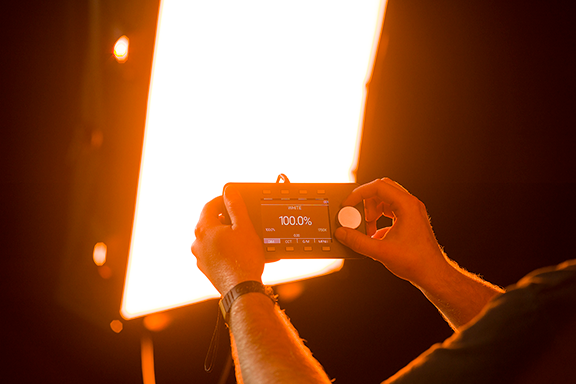

Comprehensive control: The removable controller allows flexibility and versatility on set, with White, HSI, Gel, Primary/Clone, and x y Coordinate modes.
Enhanced connectivity: Incorporating unrivaled connectivity options with native LumenRadio CRMX, ArtNet, and Primary/Clone functionality, Panalux Sonara allows you to connect however your job demands.
Created by and only available from Panalux.
Panalux Sonara 4:4 Spec Sheet
Overview of the key features and specs of the Panalux Sonara 4:4 variable-white LED soft light.
Download PDF
Panalux Sonara 4:4 Technical Drawings
Dimensional drawings of the Panalux Sonara 4:4 variable-white LED soft light.
Download PDF
Panalux Sonara Family Manual
User manual detailing the features and operation of the Panalux Sonara range of variable-white LED soft lights.
Download PDF
Panalux Sonara DMX Personalities
List of DMX channels and the parameter each controls across Panalux Sonara’s various modes.
Download PDF
Panalux Sonara Family Manual - French
French-language user manual detailing the features and operation of the Panalux Sonara range of variable-white LED soft lights.
Download PDF
